Version: Next

C++

Configure the Environment

Linux:

Execute the following commands in the terminal(Download the serial library):

git clone     https://github.com/wjwwood/serial.git
cd serial
mkdir build
cd build
cmake ..
make
sudo make install

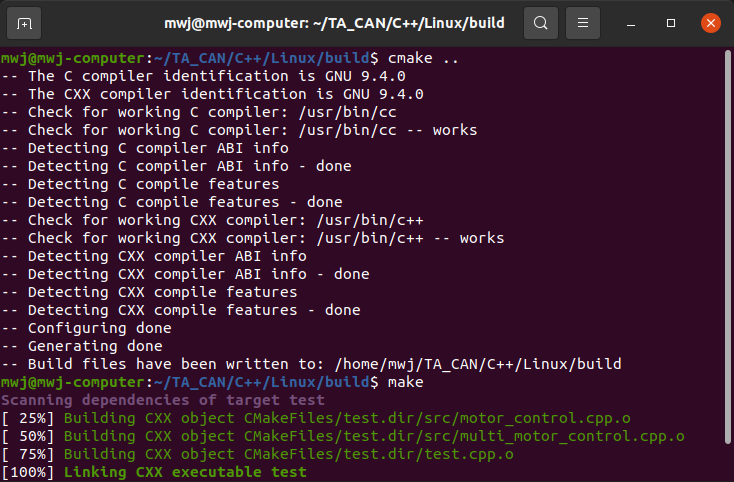

In the terminal under the TA_CAN\C++\Linux\build path, enter cmake .. to generate the build file, then entermake to generate the executable

Windows:

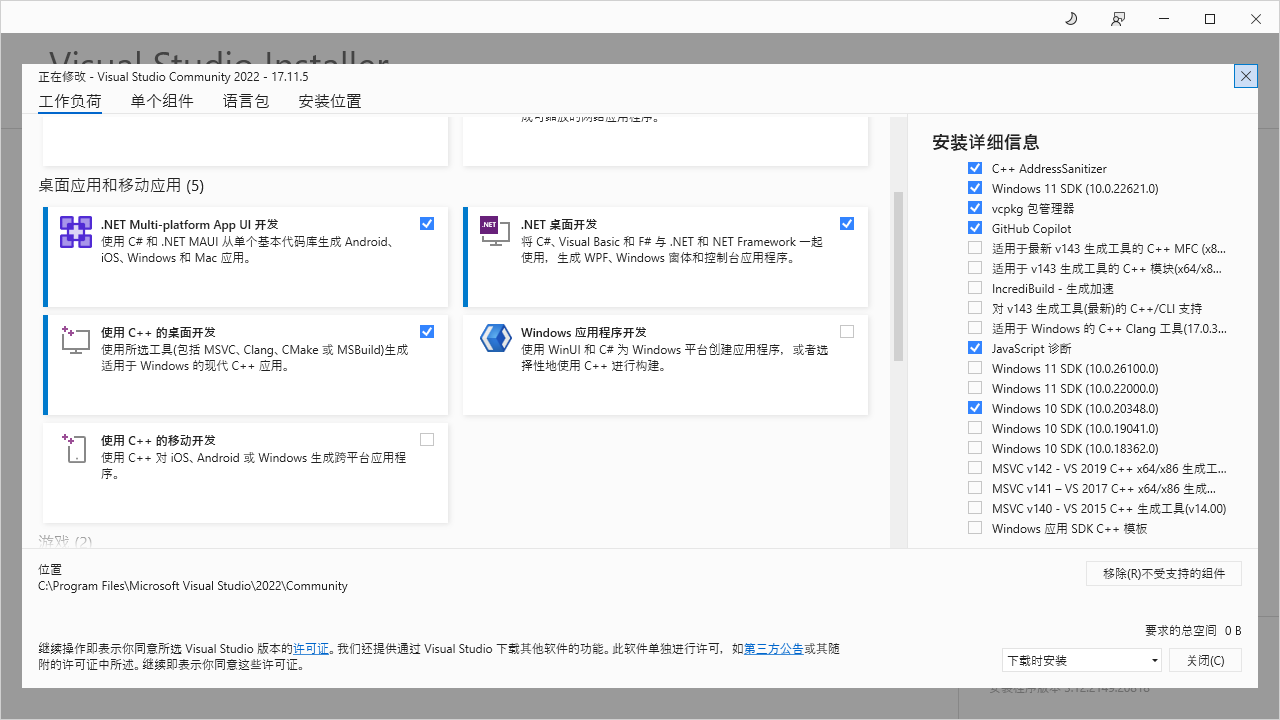

Download Visual Studio and install "Desktop Development with C++" (Case: Visual Studio 2022)

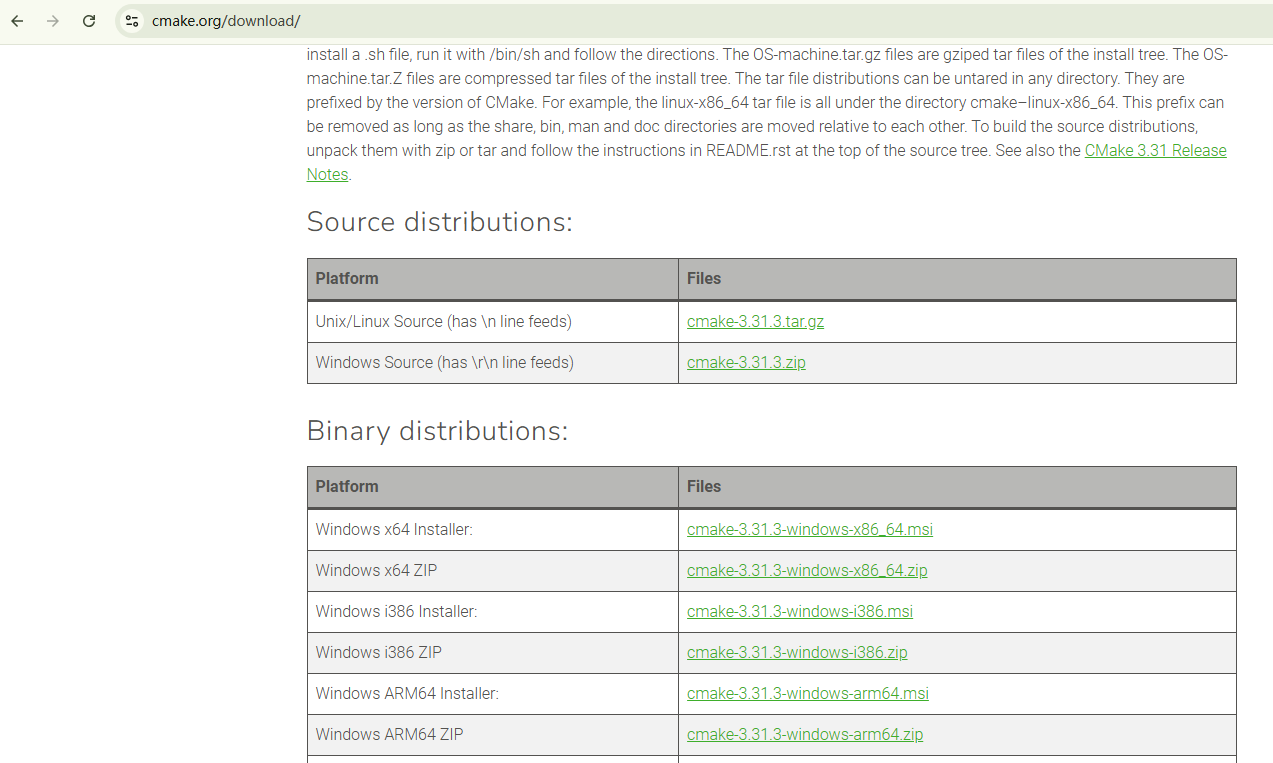

Install CMake https://cmake.org/download/
Development tools (choose one):

Visual Studio Code:

Compile serial in Developer Command Prompt for VS 2022

cd <Project Path>\TA_CAN\C++\Windows\serial\build
cmake -G "Visual Studio 17 2022" ..
cmake --build . --config Release

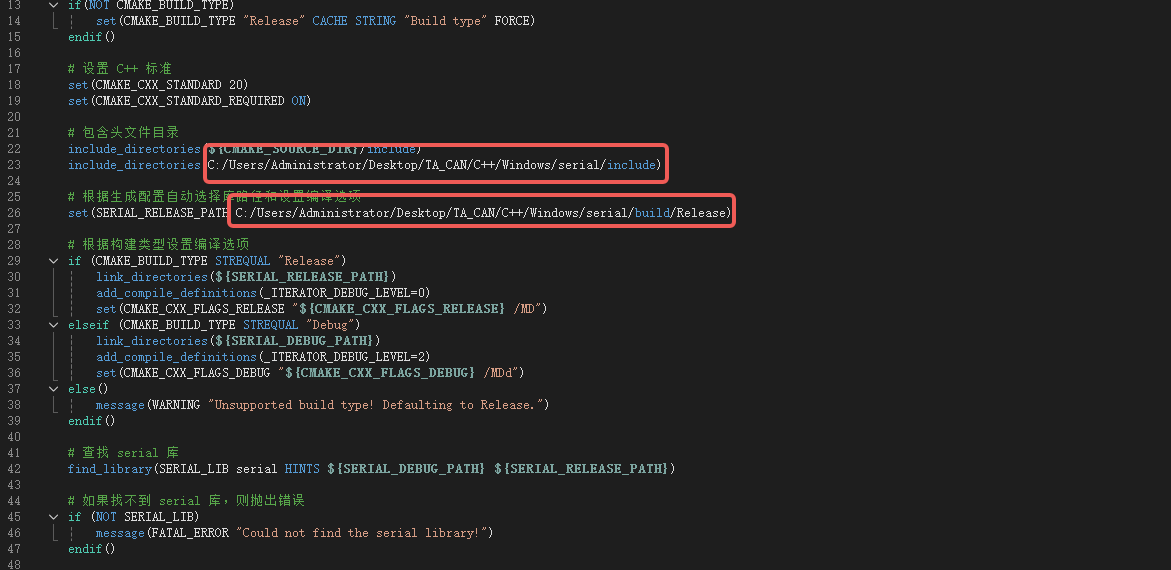

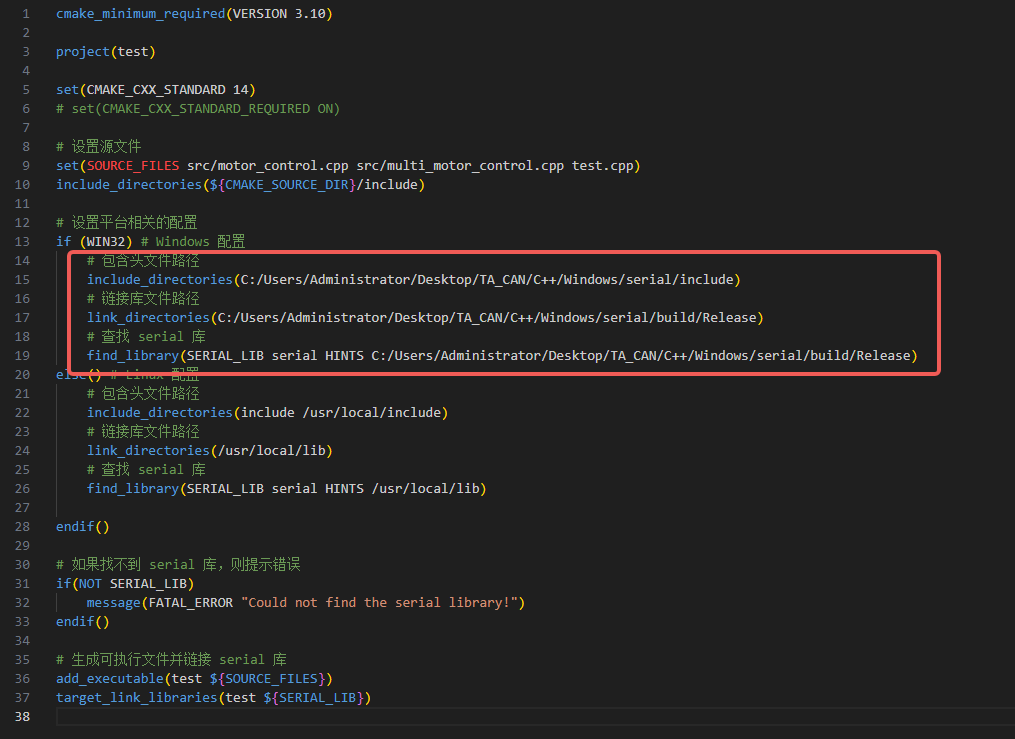

Change the serial path in the CMakeLists.txt file under the TA_CAN\C++\Windows\vs_code path to the local path
Compiling an executable in the Developer Command Prompt for VS 2022

cd <Project Path>\TA_CAN\C++\Windows\vs_code\build
cmake -G "Visual Studio 17 2022" ..
cmake --build . --config Release

Visual Studio 2022:

Compile serial in Developer Command Prompt for VS 2022

cd <Project Path>\TA_CAN\C++\Windows\serial\build
cmake -G "Visual Studio 17 2022" ..
cmake --build . --config Release

Change the serial path in the CMakeLists.txt file under the TA_CAN\C++\Windows\vs\project path to the local path The configuration must be Release. If Debug is selected, the serial version needs to be recompiled

Creating Class Objects

Single Actuator

demo:

#include <motor_control.h>
string port_name = "COM27";                     // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MotorControl motor(port_name, 921600, 0x01);    // Params: serial port path (string), baud rate (uint32_t), actuator id (0x05060100)

Multiple Actuators

demo:

#include <multi_motor_control.h>
vector<uint8_t>ids = { 0x01, 0x17 };
string port_name = "COM27";                          // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MultiMotorControl motors(port_name, 921600, ids);    // Params: serial port path (string), baud rate (uint32_t), actuator ids (0x05060100, 0x05061700)

Modify Class Object ID

Single Actuator

motor.set_obhect_id(new_id);

demo: Change ID to 0x00

#include <motor_control.h>
string port_name = "COM27";                    // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MotorControl motor(port_name, 921600, 0x01);   // Params: serial port path (string), baud rate (uint32_t), actuator id (0x05060100)

int main()
{
    motor.set_obhect_id(0x00);
}

Multiple Actuators

motors.set_obhect_id(vector<uint8_t> new_id);

demo: Change ID to 0x00 and 0x01

#include <multi_motor_control.h>
vector<uint8_t>ids = { 0x01, 0x17 };
string port_name = "COM27";                         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MultiMotorControl motors(port_name, 921600, ids);   // Params: serial port path (string), baud rate (uint32_t), actuator ids (0x05060100, 0x05061700)

int main()
{
    motors.set_obhect_id({0x00, 0x01});
}

Reset

Single Actuator

vector<int> result = motor.reset();

Phenomenon: The actuator LED turns red first and then blue

Returns the serial number and update date

demo:

#include <motor_control.h>
string port_name = "COM27";                    // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MotorControl motor(port_name, 921600, 0x01);   // Params: serial port path (string), baud rate (uint32_t), actuator id (0x05060100)

int main()
{
    motor.reset();
}

Multiple Actuators

vector<vector<int>> result = motors.reset();

Phenomenon: The actuator LED turns red first and then blue

Returns the serial number and update date

demo:

#include <multi_motor_control.h>
vector<uint8_t>ids = { 0x01, 0x17 };
string port_name = "COM27";                         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MultiMotorControl motors(port_name, 921600, ids);   // Params: serial port path (string), baud rate (uint32_t), actuator ids (0x05060100, 0x05061700)

int main()
{
    motors.reset();
}

Mode Selection

Single Actuator

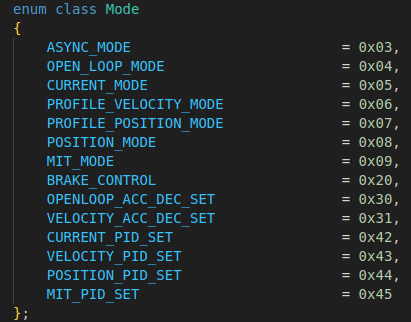

motor.mode_selection(Mode::<b>Control mode</b>, Feedback cycle 1, Feedback cycle 2, Feedback cycle 3);

❗

For control mode selection, please refer to Control Mode

demo: Enter Profile Velocity Mode

#include <motor_control.h>
string port_name = "COM27";         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MotorControl motor(port_name, 921600, 0x01);                           // Params: serial port path (string), baud rate (uint32_t), actuator id (0x05060100)

int main()
{
    motor.mode_selection(Mode::PROFILE_VELOCITY_MODE, 10, 10, 10);     // Params: Mode::operation mode, feedback cycle 1, 2, 3
}

Multiple Actuators

motors.mode_selection(Mode::<b>Control mode</b>, Feedback cycle 1, Feedback cycle 2, Feedback cycle 3);

❗

For control mode selection, please refer to Control Mode

demo: Enter Profile Velocity Mode

#include <multi_motor_control.h>
vector<uint8_t>ids = { 0x01, 0x17 };
string port_name = "COM27";         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MultiMotorControl motors(port_name, 921600, ids);                       // Params: serial port path (string), baud rate (uint32_t), actuator ids (0x05060100, 0x05061700)

int main()
{
    motors.mode_selection(Mode::PROFILE_VELOCITY_MODE, 10, 10, 10);     // Params: Mode::operation mode, feedback cycle 1, 2, 3
}

Control mode

ASYNC Mode

Single Actuator

motor.mode_selection(Mode::ASYNC_MODE, xx, xx, xx)
motor.write_async(Duty value)

(Try not to use it if there is no abnormality in the actuator)

demo: Set Duty Value to 500

#include <motor_control.h>
string port_name = "COM27";         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MotorControl motor(port_name, 921600, 0x01);                // Params: serial port path (string), baud rate (uint32_t), actuator id (0x05060100)

int main()
{
    motor.mode_selection(Mode::ASYNC_MODE, 10, 10, 10);     // Params: Mode::operation mode, feedback cycle 1, 2, 3
    motor.write_async(500);                                 // Params: duty values
}

Multiple Actuators

motors.mode_selection(Mode::ASYNC_MODE, xx, xx, xx)
motors.write_async(vector<int16_t>Duty value)

(Try not to use it if there is no abnormality in the actuator)

demo: Set Duty Value to 500

#include <multi_motor_control.h>
vector<int16_t>duty_values = { 500, 500};
vector<uint8_t>ids = { 0x01, 0x17 };
string port_name = "COM27";         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MultiMotorControl motors(port_name, 921600, ids);           // Params: serial port path (string), baud rate (uint32_t), actuator ids (0x05060100, 0x05061700)

int main()
{
    motors.mode_selection(Mode::ASYNC_MODE, 10, 10, 10);    // Params: Mode::operation mode, feedback cycle 1, 2, 3
    motors.write_async(duty_values);                        // Params: vector of duty values
}

Open Loop Mode

Single Actuator

motor.mode_selection(Mode::OPEN_LOOP_MODE, xx, xx, xx)
motor.write_open_loop(Duty value)

(Try not to use it if there is no abnormality in the actuator)

demo: Set Duty Value to 500

#include <motor_control.h>
string port_name = "COM27";         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MotorControl motor(port_name, 921600, 0x01);                    // Params: serial port path (string), baud rate (uint32_t), actuator id (0x05060100)

int main()
{
    motor.mode_selection(Mode::OPEN_LOOP_MODE, 10, 10, 10);     // Params: Mode::operation mode, feedback cycle 1, 2, 3
    motor.write_open_loop(500);                                 // Params: duty values
}

Multiple Actuators

motors.mode_selection(Mode::OPEN_LOOP_MODE, xx, xx, xx)
motors.write_open_loop(vector<int16_t>Duty value)

(Try not to use it if there is no abnormality in the actuator)

demo: Set Duty Value to 500

#include <multi_motor_control.h>
vector<int16_t>duty_values = { 300, 300 };
vector<uint8_t>ids = { 0x01, 0x17 };
string port_name = "COM27";         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MultiMotorControl motors(port_name, 921600, ids);               // Params: serial port path (string), baud rate (uint32_t), actuator ids (0x05060100, 0x05061700)

int main()
{
    motors.mode_selection(Mode::OPEN_LOOP_MODE, 10, 10, 10);    // Params: Mode::operation mode, feedback cycle 1, 2, 3
    motors.write_open_loop(duty_values);                        // Params: vector of duty values
}

Current Mode

Single Actuator

motor.mode_selection(Mode::CURRENT_MODE, xx, xx, xx);
motor.write_current(Target current);

demo: Set Target Current to 500mA

#include <motor_control.h>
string port_name = "COM27";         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MotorControl motor(port_name, 921600, 0x01);                // Params: serial port path (string), baud rate (uint32_t), actuator id (0x05060100)

int main()
{
    motor.mode_selection(Mode::CURRENT_MODE, 10, 10, 10);   // Params: Mode::operation mode, feedback cycle 1, 2, 3
    motor.write_current(500);                               // Params: target current
}

Multiple Actuators

motors.mode_selection(Mode::CURRENT_MODE, xx, xx, xx);
motors.write_current(vector<int16_t> Target current);

demo: Set Target Current to 500mA

#include <multi_motor_control.h>
vector<int16_t>cur = { 500, 500 };
vector<uint8_t>ids = { 0x01, 0x17 };
string port_name = "COM27";         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MultiMotorControl motors(port_name, 921600, ids);               // Params: serial port path (string), baud rate (uint32_t), actuator ids (0x05060100, 0x05061700)

int main()
{
    motors.mode_selection(Mode::CURRENT_MODE, 10, 10, 10);      // Params: Mode::operation mode, feedback cycle 1, 2, 3
    motors.write_current(cur);                                  // Params: vector of target current
}

Profile Velocity Mode

Single Actuator

motor.mode_selection(Mode::PROFILE_VELOCITY_MODE, xx, xx, xx)
motor.write_profile_velocity(Current limit, Target velocity)

demo: Set Target Velocity to 500rpm

#include <motor_control.h>
string port_name = "COM27";         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MotorControl motor(port_name, 921600, 0x01);                            // Params: serial port path (string), baud rate (uint32_t), actuator id (0x05060100)

int main()
{
    motor.mode_selection(Mode::PROFILE_VELOCITY_MODE, 10, 10, 10);      // Params: Mode::operation mode, feedback cycle 1, 2, 3
    motor.write_profile_velocity(2000, 500);                            // Params: current limit, target velocity
}

Multiple Actuators

motors.mode_selection(Mode::PROFILE_VELOCITY_MODE, xx, xx, xx)
motors.write_profile_velocity(vector<int16_t>Current limit, vector<int16_t>Target velocity)

demo: Set Target Velocity to 500rpm

#include <multi_motor_control.h>
vector<int16_t>cur = { 3000, 3000 };
vector<int16_t>vel = { 500, 500 };
vector<uint8_t>ids = { 0x01, 0x17 };
string port_name = "COM27";                                             // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MultiMotorControl motors(port_name, 921600, ids);                       // Params: serial port path (string), baud rate (uint32_t), actuator ids (0x05060100, 0x05061700)

int main()
{
    motors.mode_selection(Mode::PROFILE_VELOCITY_MODE, 10, 10, 10);     // Params: Mode::operation mode, feedback cycle 1, 2, 3
    motors.write_profile_velocity(cur, vel);                            // Params: vector of current limit, vector of target velocity
}

Profile Position Mode

Single Actuator

motor.mode_selection(Mode::PROFILE_POSITION_MODE, xx, xx, xx);
motor.write_profile_position(Current limit, Velocity limit, Target position);

demo: Set Target Position to 360°

#include <motor_control.h>
string port_name = "COM27";         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MotorControl motor(port_name, 921600, 0x01);                            // Params: serial port path (string), baud rate (uint32_t), actuator id (0x05060100)

int main()
{
    motor.mode_selection(Mode::PROFILE_POSITION_MODE, 10, 10, 10);      // Params: Mode::operation mode, feedback cycle 1, 2, 3
    Sleep(10);                                                          // Windows: Sleep(ms)  Linux: sleep(s)
    motor.write_profile_position(3000, 1000, 65535);                    // Params: current limit, velocity limit, target position
}

❗

The value for one full rotation of the reducer end is 16 bits = 65536

Multiple Actuators

motors.mode_selection(Mode::PROFILE_POSITION_MODE, xx, xx, xx)
motors.write_profile_position(vector<int16_t>Current limit, vector<int16_t>Velocity limit, vector<int32_t>Target position)

demo: Set Target Position to 360°

#include <multi_motor_control.h>
vector<int16_t>cur = { 3000, 3000 };
vector<int16_t>vel = { 1000, 1000 };
vector<int32_t>pos = { 65535, 65535 };
vector<uint8_t>ids = { 0x01, 0x17 };
string port_name = "COM27";                                           // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MultiMotorControl motors(port_name, 921600, ids);                     // Params: serial port path (string), baud rate (uint32_t), actuator ids (0x05060100, 0x05061700)

int main()
{
    motors.mode_selection(Mode::PROFILE_POSITION_MODE, 10, 10, 10);   // Params: Mode::operation mode, feedback cycle 1, 2, 3
    Sleep(10);                                                        // Windows: Sleep(ms)  Linux: sleep(s)
    motors.write_profile_position(cur, vel, pos);                     // Params: vector of current limit, vector of velocity limit, vector of target position
}

❗

The value for one full rotation of the reducer end is 16 bits = 65536

Position Mode

Single Actuator

motor.mode_selection(Mode::POSITION_MODE, xx, xx, xx)
motor.write_position(Current limit, Velocity limit, Target position)

demo: Set Target Position to 360°

#include <motor_control.h>
string port_name = "COM27";                                     // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MotorControl motor(port_name, 921600, 0x01);                    // Params: serial port path (string), baud rate (uint32_t), actuator id (0x05060100)

int main()
{
    motor.mode_selection(Mode::POSITION_MODE, 10, 10, 10);      // Params: Mode::operation mode, feedback cycle 1, 2, 3
    Sleep(10) ;                                                 // Windows: Sleep(ms)  Linux: sleep(s)
    motor.write_position(3000, 1000, 65535);                    // Params: current limit, velocity limit, target position
}

❗

The value for one full rotation of the reducer end is 16 bits = 65536

Multiple Actuators

motors.mode_selection(Mode::POSITION_MODE, xx, xx, xx)
motors.write_position(vector<int16_t>Current limit, vector<int16_t>Velocity limit, vector<int32_t>Target position)

demo: Set Target Position to 360°

#include <multi_motor_control.h>
vector<int16_t>cur = { 3000, 3000 };
vector<int16_t>vel = { 1000, 1000 };
vector<int32_t>pos = { 65535, 65535 };
vector<uint8_t>ids = { 0x01, 0x17 };
string port_name = "COM27";         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MultiMotorControl motors(port_name, 921600, ids);               // Params: serial port path (string), baud rate (uint32_t), actuator ids (0x05060100, 0x05061700)

int main()
{
    motors.mode_selection(Mode::POSITION_MODE, 10, 10, 10);     // Params: Mode::operation mode, feedback cycle 1, 2, 3
    Sleep(10);                                                  // Windows: Sleep(ms)  Linux: sleep(s)
    motors.write_position(cur, vel, pos);                       // Params: vector of current limit, vector of velocity limit, vector of target position
}

❗

The value for one full rotation of the reducer end is 16 bits = 65536

MIT Mode

Single Actuator

motor.mode_selection(Mode::MIT_MODE, xx, xx, xx)
motor.write_mit(Target current, Target velocity, Target position, KP, KD)

demo Point to point (The magnitude of the current should depend on the situation)

❗

Target velocity is 0, others are not 0 (Current is feed-forward torque compensation)

#include <motor_control.h>
string port_name = "COM27";         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MotorControl motor(port_name, 921600, 0x01);             // Params: serial port path (string), baud rate (uint32_t), actuator id (0x05060100)

int main()
{
    motor.mode_selection(Mode::MIT_MODE, 10, 10, 10);    // Params: Mode::operation mode, feedback cycle 1, 2, 3
    Sleep(10);                                           // Windows: Sleep(ms)  Linux: sleep(s)
    motor.write_mit(300, 0, 65535, 13.1, 10.0);          // Params: target current, target velocity, target position, kp, kd
}

Fixed velocity (The magnitude of the current should depend on the situation)

❗

Target position and KP are 0, others are not 0 (Current is feed-forward torque compensation)

#include <motor_control.h>
string port_name = "COM27";         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MotorControl motor(port_name, 921600, 0x01);             // Params: serial port path (string), baud rate (uint32_t), actuator id (0x05060100)

int main()
{
    motor.mode_selection(Mode::MIT_MODE, 10, 10, 10);    // Params: Mode::operation mode, feedback cycle 1, 2, 3
    Sleep(10);                                           // Windows: Sleep(ms)  Linux: sleep(s)
    motor.write_mit(300, 500, 0, 0.0, 10.0);             // Params: target current, target velocity, target position, kp, kd
}

Fixed torque

❗

Target current is not 0, others are 0

#include <motor_control.h>
string port_name = "COM27"         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MotorControl motor(port_name, 921600, 0x01);             // Params: serial port path (string), baud rate (uint32_t), actuator id (0x05060100)

int main()
{
    motor.mode_selection(Mode::MIT_MODE, 10, 10, 10);    // Params: Mode::operation mode, feedback cycle 1, 2, 3
    Sleep(10);                                           // Windows: Sleep(ms)  Linux: sleep(s)
    motor.write_mit(500, 0, 0, 0.0, 0.0);                // Params: target current, target velocity, target position, kp, kd
}

Multiple Actuators

motors.mode_selection(Mode::MIT_MODE, xx, xx, xx)
motors.write_mit(vector<int16_t>target current, vector<int16_t>target velocity, vector<int16_t>target position, vector<float>KP, vector<float>KD)

demo: Point to point (The magnitude of the current should depend on the situation)

❗

Target velocity is 0, others are not 0 (Current is feed-forward torque compensation)

#include <multi_motor_control.h>
vector<int16_t>cur = { 300, 300 };
vector<int16_t>vel = { 0, 0 };
vector<int32_t>pos = { 65535, 65535 };
vector<float>kp = { 13.1, 13.1 };
vector<float>kd = { 10.0, 10.0 };
vector<uint8_t>ids = { 0x01, 0x17 };
string port_name = "COM27";         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MultiMotorControl motors(port_name, 921600, ids);            // Params: serial port path (string), baud rate (uint32_t), actuator ids (0x05060100, 0x05061700)

int main()
{
    motors.mode_selection(Mode::MIT_MODE, 10, 10, 10);   // Params: Mode::operation mode, feedback cycle 1, 2, 3
    Sleep(10);                                           // Windows: Sleep(ms)  Linux: sleep(s)
    motors.write_mit(cur, vel, pos, kp, kd);             // Params: vector of target current, vector of target velocity, vector of target position,
                                                         // vector of kp, vector of kd
}

Fixed velocity (The magnitude of the current should depend on the situation)

❗

Target position and KP are 0, others are not 0 (Current is feed-forward torque compensation)

#include <multi_motor_control.h>
vector<int16_t>cur = { 300, 300 };
vector<int16_t>vel = { 500, 500 };
vector<int32_t>pos = { 0, 0 };
vector<float>kp = { 0.0, 0.0 };
vector<float>kd = { 10.0, 10.0 };
vector<uint8_t>ids = { 0x01, 0x17 };
string port_name = "COM27";         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MultiMotorControl motors(port_name, 921600, ids);        // Params: serial port path (string), baud rate (uint32_t), actuator ids (0x05060100, 0x05061700)

int main()
{
    motors.mode_selection(Mode::MIT_MODE, 10, 10, 10);   // Params: Mode::operation mode, feedback cycle 1, 2, 3
    Sleep(10);                                           // Windows: Sleep(ms)  Linux: sleep(s)
    motors.write_mit(cur, vel, pos, kp, kd);             // Params: vector of target current, vector of target velocity, vector of target position,
                                                         // vector of kp, vector of kd
}

Fixed torque

❗

Target current is not 0, others are 0

#include <multi_motor_control.h>
vector<int16_t>cur = { 500, 500 };
vector<int16_t>vel = { 0, 0 };
vector<int32_t>pos = { 0, 0 };
vector<float>kp = { 0.0, 0.0 };
//vector<float>kd = { 0.0, 0.0 };
string port_name = "COM27";         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MultiMotorControl motors(port_name, 921600, ids);        // Params: serial port path (string), baud rate (uint32_t), actuator ids (0x05060100, 0x05061700)

int main()
{
    motors.mode_selection(Mode::MIT_MODE, 10, 10, 10);   // Params: Mode::operation mode, feedback cycle 1, 2, 3
    Sleep(10);                                           // Windows: Sleep(ms)  Linux: sleep(s)
    motors.write_mit(cur, vel, pos, kp, kd);             // Params: vector of target current, vector of target velocity, vector of target position,
                                                         // vector of kp, vector of kd
}

Read Parameters

Single Actuator

MotorStatus status = motor.get_motor_status(header_types);

❗

header_types: 0xB1, 0xB2, 0xB3

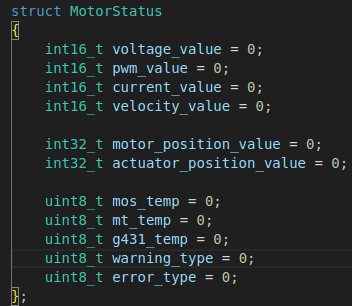

MotorStatus is a structure used to store actuator parameters

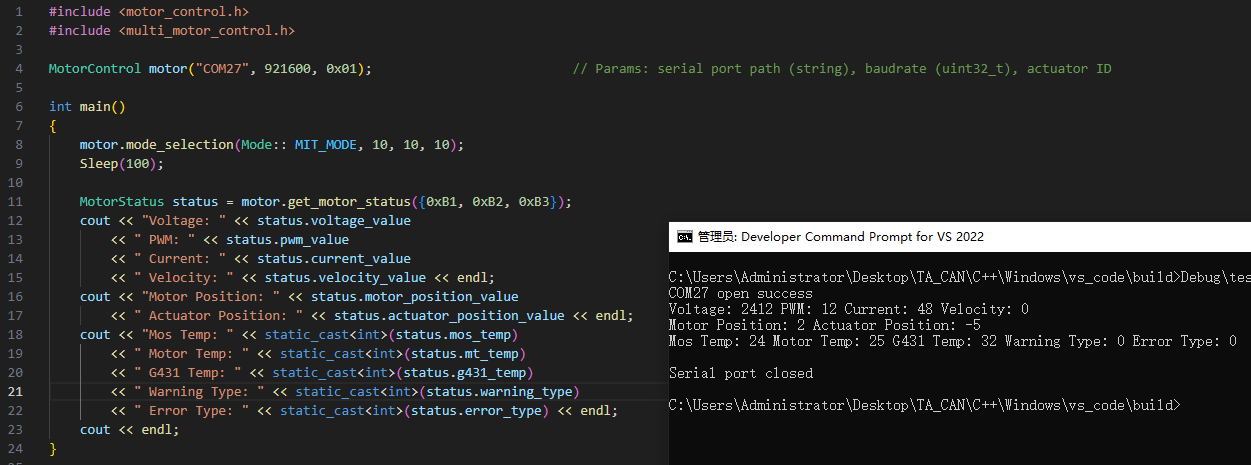

Read all parameters

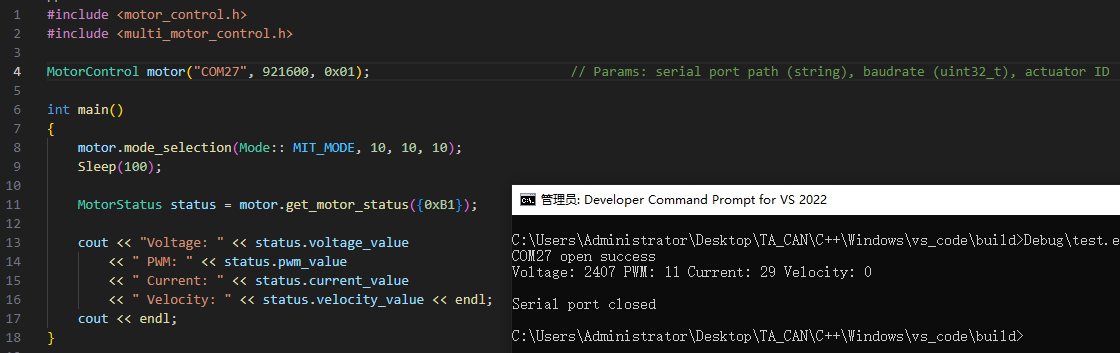

Read voltage, PWM, current and velocity

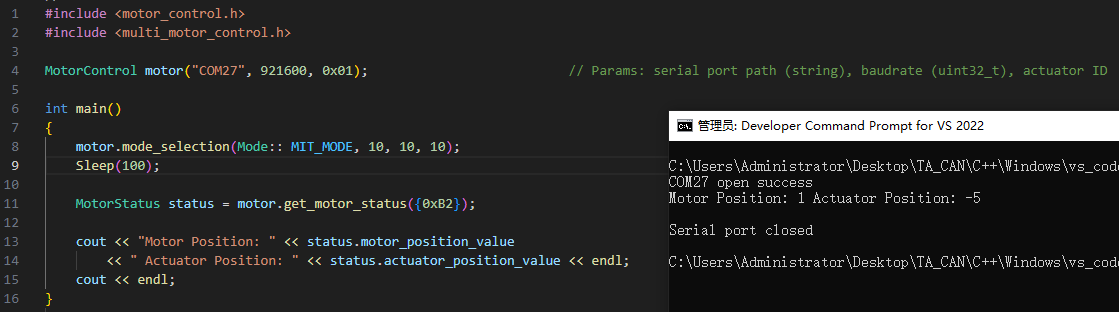

Read motor position and actuator position

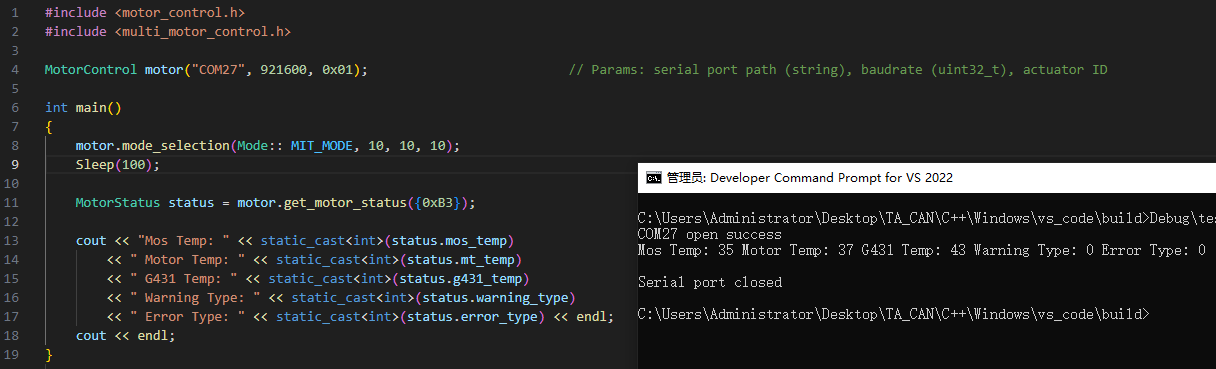

Read MOS tube temperature, motor temperature, G431 chip temperature, warning type and error type

Multiple Actuators

vector<MultiMotorStatus> all_motor_status = motors.get_motor_status(vector<uint8_t>header_types);

❗

header_types: 0xB1, 0xB2, 0xB3

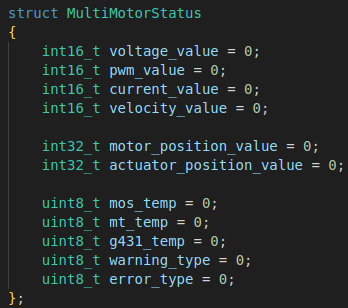

MultiMotorStatus is a structure used to store actuator parameters

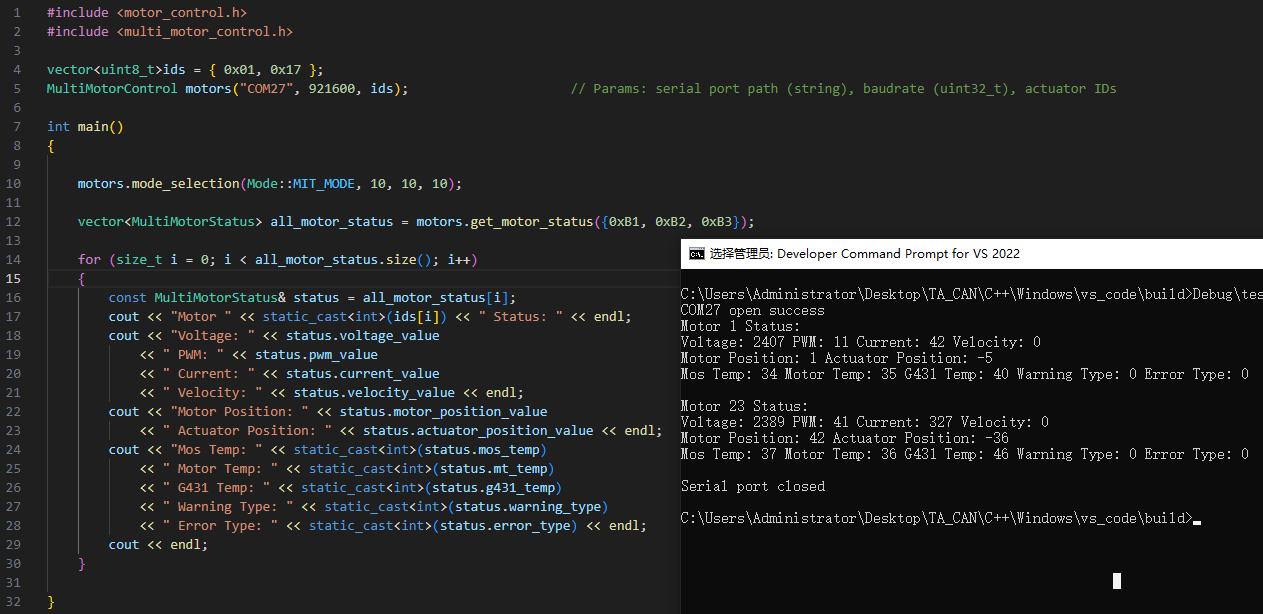

Read all parameters

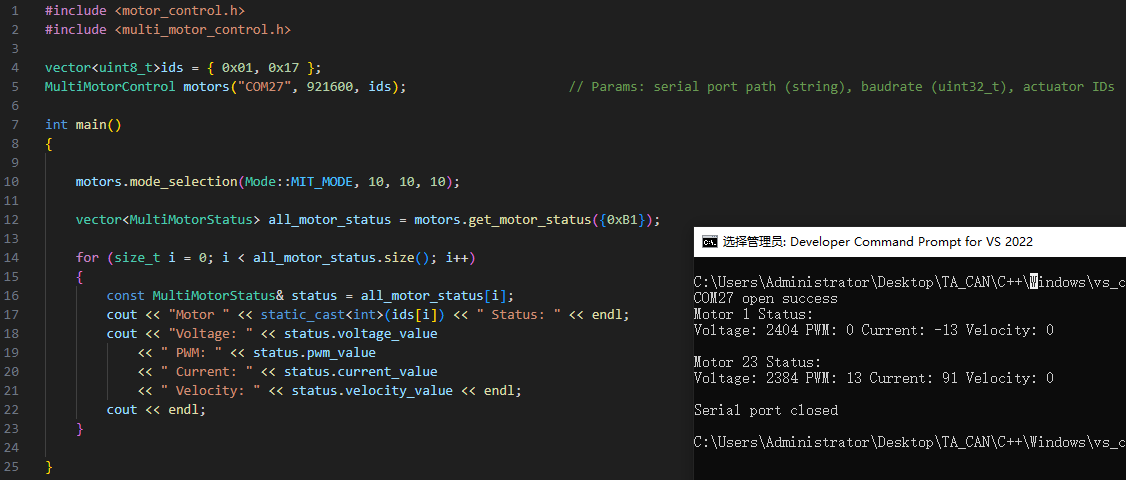

Read voltage, PWM, current and velocity

Read motor position and actuator position

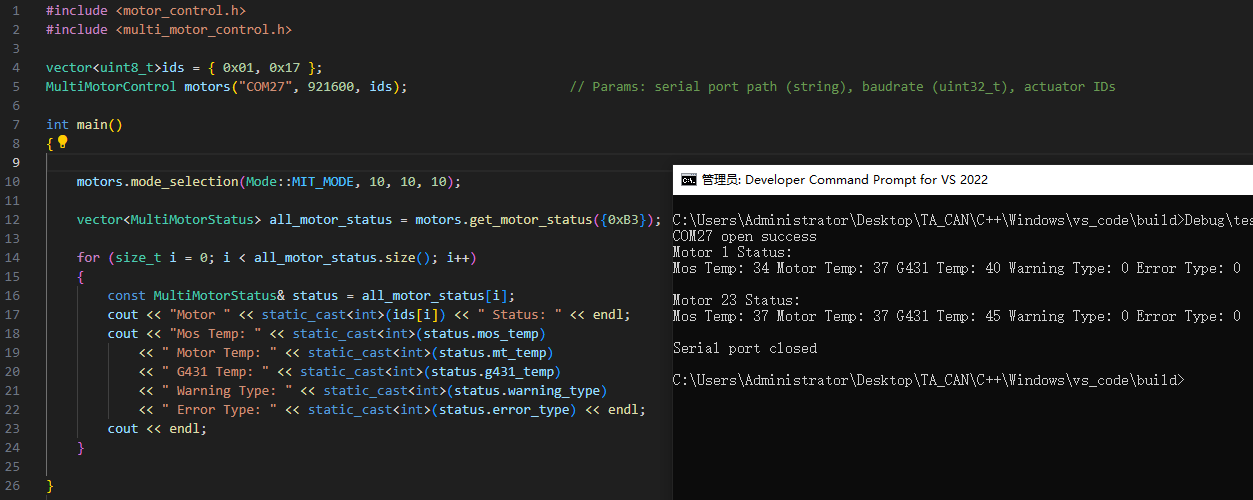

Read MOS tube temperature, motor temperature, G431 chip temperature, warning type and error type

Other functions

Single Actuator

brake, modify the acceleration and deceleration of the open-loop mode, modify the acceleration and deceleration of the profile speed, modify the current pid, modify the speed pid, modify the position pid

#include <motor_control.h>
string port_name = "COM27";         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MotorControl motor(port_name, 921600, 0x01);            // Params: serial port path (string), baud rate (uint32_t), actuator id (0x05060100)

int main()
{
    motor.brake_control(-2000, 500);                    // Params: pwm, durations
    motor.write_openloop_acc_dec(2000, 2000);           // Params: acceleration, deceleration
    motor.write_velocity_acc_dec(2000, 2000);           // Params: acceleration, deceleration
    motor.write_current_pid(0.001, 0.001);              // Params: KP, KI
    motor.write_velocity_pid(0.001, 0.001);             // Params: KP, KI
    motor.write_position_pid(0.001, 0.001);             // Params: KP, KD
}

Modify the acceleration and deceleration of the contour speed in real time

#include <motor_control.h>
string port_name = "COM27";         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MotorControl motor(port_name, 921600, 0x01);    // Params: serial port path (string), baud rate (uint32_t), actuator id (0x05060100)

int main()
{
    motor.mode_selection(Mode::PROFILE_VELOCITY_MODE, 10, 10, 10);
    while (1)
    {
        static int16_t i = 0;
        i += 100;
        motor.write_velocity_acc_dec(i, i);
        cout << i << endl;
        if (i >= 1000)
        {
            break;
        }
        motor.write_profile_velocity(3000, 1000);
        Sleep(4000);
        motor.write_profile_velocity(3000, 0);
        Sleep(3000);
    }
}

Multiple Actuators

#include <multi_motor_control.h>
vector<int16_t>pwm = { 2000, 2000 };
vector<uint16_t>dur = { 500, 500 };
vector<int16_t>acc_ = { 2000, 2000 };
vector<int16_t>dec_ = { 2000, 2000 };
vector<float>kps = { 0.001, 0.001 };
vector<float>kis = { 0.001, 0.001 };
vector<float>kds = { 0.001, 0.001 };
vector<uint8_t>ids = { 0x01, 0x17 };
string port_name = "COM27";         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MultiMotorControl motors(port_name, 921600, ids);       // Params: serial port path (string), baud rate (uint32_t), actuator ids (0x05060100, 0x05061700)

int main()
{
    motors.brake_control(pwm, dur);                     // Params: vector of pwm, vector of durations
    motors.write_openloop_acc_dec(acc_, dec_);          // Params: vector of acceleration, vector of deceleration
    motors.write_velocity_acc_dec(acc_, dec_);          // Params: vector of acceleration, vector of deceleration
    motors.write_current_pid(kps, kis);                 // Params: vector of KP, vector of KI
    motors.write_velocity_pid(kps, kis);                // Params: vector of KP, vector of KI
    motors.write_position_pid(kps, kds);                // Params: vector of KP, vector of KD
}

Modify the acceleration and deceleration of the contour speed in real time

#include <multi_motor_control.h>
vector<int16_t>cur = { 3000, 3000 };
vector<int16_t>vel = { 1000, 1000 };
vector<int16_t>vel_0 = { 0, 0 };
vector<uint8_t>ids = { 0x01, 0x17 };
string port_name = "COM27";         // Windows: "COM*"  Linux: "/dev/ttyUSB*"
MultiMotorControl motors(port_name, 921600, ids);       // Params: serial port path (string), baud rate (uint32_t), actuator ids (0x05060100, 0x05061700)

int main()
{
    motors.mode_selection(Mode::PROFILE_VELOCITY_MODE, 10, 10, 10);
    Sleep(100);
    while (1)
    {
        static int16_t i = 0;
        i += 100;
        vector<int16_t> acc_dec = { i, i };
        motors.write_velocity_acc_dec(acc_dec, acc_dec);
        cout << i << endl;
        if (i >= 1000)
        {
            break;
        }
        motors.write_profile_velocity(cur, vel);
        Sleep(4000);
        motors.write_profile_velocity(cur, vel_0);
        Sleep(3000);
    }
}

Configure the Environment​

Creating Class Objects​

Modify Class Object ID​

Reset​

Mode Selection​

ASYNC Mode​

Open Loop Mode​

Current Mode​

Profile Velocity Mode​

Profile Position Mode​

Position Mode​

MIT Mode​

Read Parameters​

Other functions​

Configure the Environment

Creating Class Objects

Modify Class Object ID

Reset

Mode Selection

ASYNC Mode

Open Loop Mode

Current Mode

Profile Velocity Mode

Profile Position Mode

Position Mode

MIT Mode

Read Parameters

Other functions
